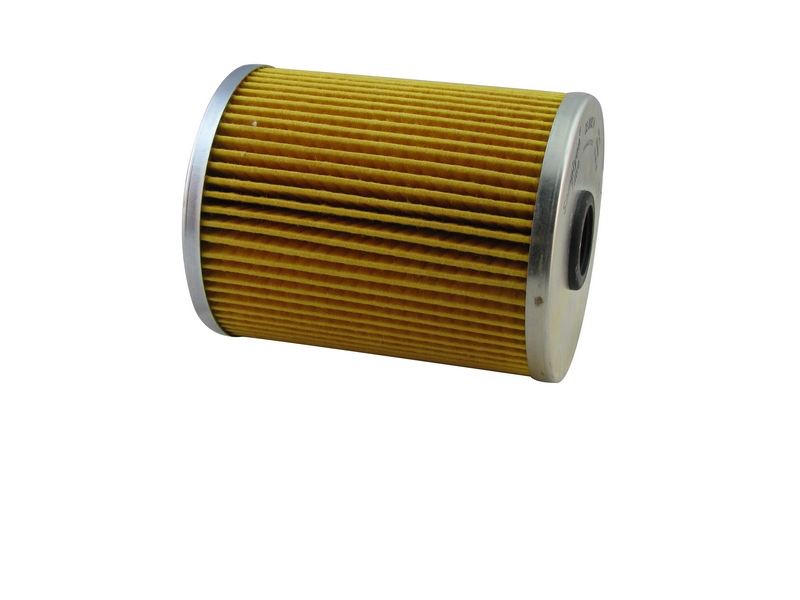

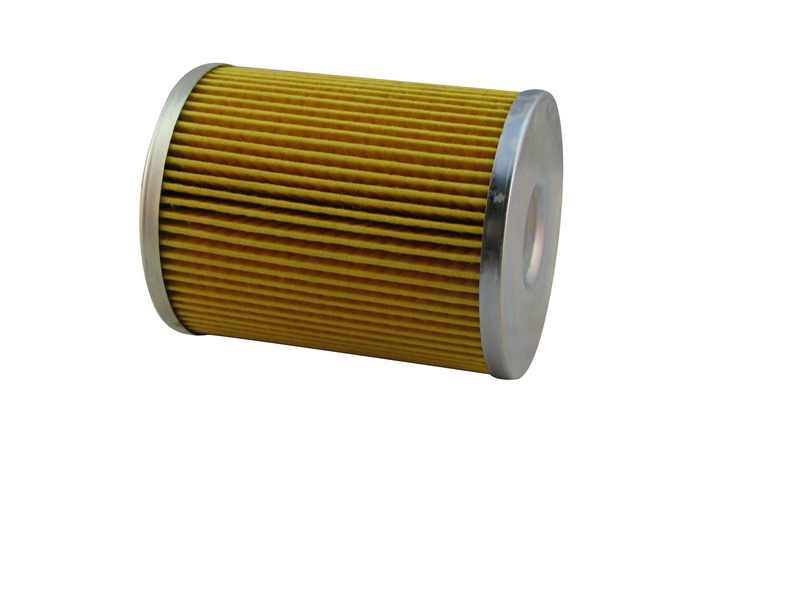

CE 0082 H
Yağ (Eleman)

İstek Listesine Git

Ürün Karşılaştırma Listesine Git

Ürün Bilgisi

Üretim Durumu: Aktif

Ölçüler

A: 83,50 mm
B: 19,50 mm
H: 107,00 mm

MAN

TGS (07-)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
18.320	D 2066	235	320	2007/10 →
18.360	D 2066	265	360	2007/10 →
18.420	D 2676	309	420	2016/07 →
18.460	D 2676	338	460	2016/07 →
18.500	D 2676	368	500	2016/07 →
19.360	D 2066	265	360	2011/02 →
19.420	D 2676	309	420	2016/07 →
19.460	D 2676	338	460	2016/07 →
19.500	D 2676	368	500	2016/07 →
21.360	D 2066	265	360	2007/10 →
21.420	D 2676	309	420	2016/07 →
21.460	D 2676	338	460	2016/07 →
21.500	D 2676	368	500	2016/07 →
24.320	D 2066	235	320	2007/10 →
24.360	D 2066	265	360	2007/10 →
24.420	D 2676	309	420	2016/07 →
24.460	D 2676	338	460	2016/07 →
24.500	D 2676	368	500	2016/07 →
26.320	D 2066	235	320	2007/10 →
26.360	D 2066	265	360	2007/10 →
26.420	D 2676	309	420	2016/07 →
26.460	D 2676	338	460	2016/07 →
26.500	D 2676	368	500	2016/07 →
28.320	D 2066	235	320	2007/10 →
28.360	D 2066	265	360	2007/10 →
28.420	D 2676	309	420	2016/07 →
28.460	D 2676	338	460	2016/07 →
28.500	D 2676	368	500	2016/07 →
32.320	D 2066	235	320	2007/10 →
32.360	D 2066	265	360	2007/10 →
32.420	D 2676	309	420	2016/07 →
32.460	D 2676	338	460	2016/07 →
32.500	D 2676	368	500	2016/07 →
33.320	D 2066	235	320	2007/10 →
33.360	D 2066	265	360	2007/10 →
33.420	D 2676	309	420	2016/07 →
33.460	D 2676	338	460	2016/07 →
33.500	D 2676	368	500	2016/07 →
35.320	D 2066	235	320	2007/10 →
35.360	D 2066	265	360	2007/10 →
35.420	D 2676	309	420	2016/07 →
35.460	D 2676	338	460	2016/07 →
35.500	D 2676	368	500	2016/07 →
37.420	D 2676	309	420	2016/07 →
37.460	D 2676	338	460	2016/07 →
37.500	D 2676	368	500	2016/07 →
39.320	D 2066	235	320	2007/10 →
39.360	D 2066	265	360	2007/10 →
39.420	D 2676	309	420	2016/07 →
39.460	D 2676	338	460	2016/07 →
39.500	D 2676	368	500	2016/07 →
40.320	D 2066	235	320	2007/10 →
40.360	D 2066	265	360	2007/06 →
40.420	D 2676	309	420	2016/07 →
40.460	D 2676	338	460	2016/07 →
40.500	D 2676	368	500	2016/07 →
41.360	D 2066	265	360	2007/10 →
41.420	D 2676	309	420	2016/07 →
41.460	D 2676	338	460	2016/07 →
41.500	D 2676	368	500	2016/07 →

TGX (07-)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
18.360	D 2066	265	360	2007/10 →
18.420	D 2676	309	420	2016/07 →
18.460	D 2676	338	460	2016/07 →
18.500	D 2676	368	500	2016/07 →
18.540 D38	D 3876	397	540	2016/07 →
18.580 D38	D 3876	427	580	2016/07 →
18.640 D38	D 3876	471	640	2016/07 →
24.360	D 2066	265	360	2007/10 →
24.420	D 2676	309	420	2016/07 →
24.460	D 2676	338	460	2016/07 →
24.500	D 2676	368	500	2016/07 →
24.540 D38	D 3876	397	540	2016/07 →
24.580 D38	D 3876	427	580	2016/07 →
24.640 D38	D 3876	471	640	2016/07 →
26.360	D 2066	265	360	2007/10 →
26.420	D 2676	309	420	2016/07 →
26.460	D 2676	338	460	2016/07 →
26.500	D 2676	368	500	2016/07 →
26.540 D38	D 3876	397	540	2016/07 →
26.580 D38	D 3876	427	580	2016/07 →
26.640 D38	D 3876	471	640	2016/07 →
28.360	D 2066	265	360	2007/10 →
28.420	D 2676	309	420	2016/07 →
28.460	D 2676	338	460	2016/07 →
28.500	D 2676	368	500	2016/07 →
28.540 D38	D 3876	397	540	2016/07 →
28.580 D38	D 3876	427	580	2016/07 →
28.640 D38	D 3876	471	640	2016/07 →
33.360	D 2066	265	360	2007/10 →
33.420	D 2676	309	420	2016/07 →
33.460	D 2676	338	460	2016/07 →
33.500	D 2676	368	500	2016/07 →
33.540 D38	D 3876	397	540	2016/07 →
33.580 D38	D 3876	427	580	2016/07 →
33.640 D38	D 3876	471	640	2014/08 →
35.360	D 2066	265	360	2008/06 →
35.420	D 2676	309	420	2016/07 →
35.460	D 2676	338	460	2016/07 →
35.500	D 2676	368	500	2016/07 →
35.540 D38	D 3876	397	540	2016/07 →
35.580 D38	D 3876	427	580	2016/07 →
35.640 D38	D 3876	471	640	2014/08 →
41.420	D 2676	309	420	2016/07 →
41.460	D 2676	338	460	2016/07 →
41.500	D 2676	368	500	2016/07 →
41.540 D38	D 3876	397	540	2016/07 →
41.580 D38	D 3876	427	580	2016/07 →
41.640 D38	D 3876	471	640	2014/08 →

SCANIA

3 (93-143)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
P 113	DS/DSC/DTC 11	252	343	1988/06 → 1997/06
R 113	DS/DSC/DTC 11	252	343	1988/06 → 1997/06
R 143	DSC 14			1988/05 → 1996/12
T 113	DN/DS/DSC 11	252	343	1988/05 → 1997/06
T 143	DSC 14			1988/05 → 1996/12
T 93	DN/DS/DSC 9			1988/03 → 1991/01

4 (94-164)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
P 114	DSC11 (Euro2)	252	343	1996/10 → 2004/10
P 124	DC12 (Euro3)			1999/03 → 2004/10
P 94	DSC9 (Euro2)	167	227	1995/10 → 2004/10
R 114	DC11 (Euro3)			1999/03 → 2004/10
R 124	DC12 (Euro3)			1999/03 → 2004/10
R 144	DSC 14 (Euro2)			1995/11 → 2001/12
R 164 V8	DC 16.02	353	480	2000/06 → 2004/10
R 94	DSC9 (Euro2)	167	227	1995/10 → 2004/10
T 114	DC11 (Euro3)			1998/03 → 2004/10
T 124	DT1202/08 (Euro3)	345	469	2001/02 → 2004/10
T 144	DSC 14 (Euro2)			1995/11 → 2001/12
T 164 V8	DC 16.01	426	580	2000/06 → 2004/10
T 94	DC9 (Euro3)			1999/03 → 2004/10

G (G230 - G490)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
G 230	DC9 16-230 E4	169	230	2007/10 →
G 250	DC09 111-250 E6	184	250	2013/10 →
G 270	DC9 17-270 E4	198	270	2007/10 →
G 280	DC09 113-280 E6	206	280	2013/10 →
G 280 CNG	OC09 101 280 E5/E6/EEV	206	280	2013/03 →
G 310	DC9 18-310 E4	228	310	2007/10 →
G 320	DC09 108-320 E6	235	320	2013/10 →
G 340	DC12 10-340 E4	250	340	2007/10 →
G 340 CNG	OC09.102 E5/6/EEV	250	340	2011/01 →
G 360	DC09 112-360 E6	265	360	2013/10 →
G 370	DC13 116-370 E6	272	370	2013/10 →
G 380	DC12 13-380 E4	280	380	2007/10 →
G 410	DC13 115-410 E6	302	410	2013/10 →
G 420	DT12 12-420 E4	309	420	2007/10 →
G 440	DC13 10-440 E5, DC13109-440 E6	324	440	2010/04 →
G 450	DC13 124/147-450 E6	331	450	2013/10 →
G 470	DT12 06-470 E3	345	470	2007/10 →
G 480	DC13 07-480 E5	353	480	2007/10 →
G 490	DC13 125-490 E6	360	490	2013/10 →

G New Generation (G280 - G500)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
G 280	DC09 130	206	280	2017/06 →
G 320	DC09 126	235	320	2017/06 →
G 360	DC09 127	265	360	2017/06 →
G 370	DC13 149	272	370	2017/06 →
G 410, G 410 XT	DC13 141	302	410	2017/06 →
G 450, G 450 XT	DC13 148	331	450	2017/06 →
G 500, G 500 XT	DC13 155	358	500	2017/06 →

L (L220 - L360)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
L 220	DC07 111	162	220	2018/02 →
L 250	DC07 112	184	250	2018/02 →
L 280 (DC07)	DC07 113	206	280	2018/02 →
L 280 (DC09)	DC09 130	206	280	2017/12 →
L 280 CNG	OC09 104	206	280	2018/02 →
L 320	DC09 126	235	320	2017/12 →
L 340 CNG	OC09 105	250	340	2018/02 →
L 360	DC09 127	265	360	2017/12 →

P (P230 - P490)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
P 230	DC9 16-230 E4	169	230	2005/10 →
P 250	DC09 109/111-250 E5/6	184	250	2012/01 →
P 270	DC9 17-270 E4	198	270	2005/10 →
P 280	DC9 29/36/38-280 E5/EEV	206	280	2007/10 →
P 280 CNG	OC09 101 280 E5/E6/EEV	206	280	2013/03 →
P 310	DC9 18/110-310 E 4/5	228	310	2005/11 →
P 310 CNG	OC9 G05 E5/6/EEV	224	305	2011/01 →
P 320	DC09 37/108-320 E6	235	320	2013/10 →
P 320, P 325	DC9 22, DC9 28-320 E5	235	320	2007/10 →
P 340	DC11 08-340 E3	250	340	2004/09 →
P 340 CNG	OC09.102 E5/6/EEV	250	340	2011/01 →
P 360	DC09 112-360 E6	265	360	2013/10 →
P 370	DC13 116-370 E6	272	370	2013/10 →
P 380	DC11 09-380 E3	279	380	2004/09 →
P 400	DC13 05-400 E5	294	400	2007/10 →
P 410	DC13 115-410 E6	302	410	2013/10 →
P 420	DC12 15-420 E5	309	420	2006/05 →
P 450	DC13 124-450 E6	331	450	2013/10 →
P 470	DT12 06-470 E3	345	470	2004/09 → 2007/09
P 480	DC13 07-480 E5	353	480	2007/10 →
P 490	DC13 125-490 E6	360	490	2013/10 →

P New Generation (P220 - P500)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
P 220	DC07 111	162	220	2018/02 →
P 250	DC07 112	184	250	2018/02 →
P 280 (DC07)	DC07 113	206	280	2018/02 →
P 280 (DC09)	DC09 130	206	280	2017/09 →
P 280 CNG	OC09 104	206	280	2018/02 →
P 320	DC09 126	235	320	2017/09 →
P 340 CNG	OC09 105	250	340	2018/02 →
P 360	DC09 127	265	360	2017/09 →
P 370	DC13 149	272	370	2017/09 →
P 410	DC13 141	302	411	2017/09 →
P 410 CNG	OC13 101	302	410	2018/01 →
P 450	DC13 148	331	450	2017/09 →
P 500	DC13 155	358	487	2017/09 →

R (R230 - R730)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
R 230	DC9 13/DC9 19 E3	169	230	2004/06 →
R 250	DC09 111-250 E6	184	250	2013/10 →
R 270	DC9 17-270 E4	198	270	2005/10 →
R 280	DC09 113-280 E6	206	280	2013/10 →
R 310	DC9 11/ DC9 21 E3	228	310	2004/06 →
R 320	DC09 108-320 E6	235	320	2013/10 →
R 340	DC12 10-340 E4	250	340	2005/10 →
R 360	DC09 112-360 E6	265	360	2013/10 →
R 370	DC13 116-370 E6	272	370	2013/10 →
R 380	DC12 18-380 E5	280	381	2006/09 →
R 400	DC13 05-400 E5	294	400	2007/10 →
R 410	DC13 115-410 E6	302	410	2013/10 →
R 420	DT12 12-420 E4	309	420	2004/06 →
R 440	DC13 10/109-440 E5/6	324	440	2007/10 →
R 450	DC13 124/147-450 E6	331	450	2013/10 →
R 470	DT12 06-470 E3	345	470	2004/06 →
R 480	DC13 07-480 E5	353	480	2007/10 →
R 490	DC13 125-490 E6	360	490	2013/10 →
R 500	DC16 06-500 E4	368	500	2006/02 →
R 520	DC16-101-520 E6	382	520	2013/10 →
R 560	DC16 18-560 E5	412	560	2007/10 →
R 580	DC16 03-580 E3	426	580	2004/06 →
R 620	DC16 08-620 E4, DC16 17-620 E5	456	620	2006/05 →
R 730	DC16 21/103-730 E5/EEV/E6	537	730	2010/05 →

R New Generation (R410 - R730), S (S410 - S730)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
R 370, S 370	DC13 149	272	370	2016/10 →
R 410, R 410 XT, S 410	DC13 141	302	410	2016/08 →
R 450, R 450 XT, S 450	DC13 148	331	450	2016/08 →
R 500, R 500 XT, S 500	DC13 155	358	500	2016/08 →
R 520, S 520	DC16 105, DC16 116	382	520	2016/08 →
R 580, S 580	DC16 106, DC16 117	427	580	2016/08 →
R 650, S 650	DC16 118	478	650	2017/06 →
R 730, S 730	DC16 103/107/108	537	730	2016/08 →

T (T340 - T580)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
T 340	DC11 08-340 Euro3	250	340	2004/09 → 2005/12
T 380	DC11 09-380 Euro3	279	380	2004/09 → 2005/12
T 420	DC12 14-420 Euro3	309	420	2004/09 → 2005/12
T 470	DT12 06-470 Euro3	346	470	2004/09 → 2005/12
T 500	DC16 04-500 Euro3	368	500	2004/09 → 2005/12
T 580	DC16 03-580 Euro3	426	580	2004/09 → 2005/12

SCANIA BUS / SCANIA-IRIZAR

A30, Higer A30

Seri	Motor Tanımı	kW	HP	Üretim Yılı
12, 12,5, 13	DC09 E6	235	320	2014/01 →

B/BF/BK/BN/BR

Seri	Motor Tanımı	kW	HP	Üretim Yılı
BN 113 ALB	DS/DSC 11	252	343	1990/05 →
BN 113 CLB	DN/DS/DSC 11	252	343	1990/05 →

C/CF/CN/CR

Seri	Motor Tanımı	kW	HP	Üretim Yılı
C 113	DN/DS/DSC 11	252	343	1990/11 →

Century (Irizar)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
12.35	DSC 1205	308	420	1996/05 →
12.37	DC 12 (Euro3)	310	420	2000/01 →
12.85	DC11/DC12	310	420	2002/09 →
13.37	DC 12 (Euro3)	310	420	2002/01 →

Citywide LE/LF

Seri	Motor Tanımı	kW	HP	Üretim Yılı
250	DC09 111 250	184	250	2013/09 →
280	DC09 113 280	206	280	2013/09 →
280 CNG	OC09 101 280	206	280	2013/09 →
320	DC09 108 320	235	320	2013/09 →
320 CNG	OC09 101 320	235	280	2013/09 →
360	DC09 112 360	265	360	2013/09 →

F82/93/112/113

Seri	Motor Tanımı	kW	HP	Üretim Yılı
F 93 HL/HR	DN/DS/DSC 9	167	227	1990/06 →

Irizar i4 / i4H / i4 LE / i6

Seri	Motor Tanımı	kW	HP	Üretim Yılı
270 H, L, M	DC 9 17 270	198	270	2007/09 →
310 H, L, M	DC 9 18 310	228	310	2007/09 →
340 H, L, M	DC 12 10 340	250	340	2007/09 →
380 H, L, M	DC 12 13 380	280	380	2007/09 →

K93/113

Seri	Motor Tanımı	kW	HP	Üretim Yılı
K 113 CL	DN/DS/DSC 11	252	343	1992/10 →
K 113, K 113 CLB	DN/DS/DSC 11			1989/11 → 2000/12

K94/114/124

Seri	Motor Tanımı	kW	HP	Üretim Yılı
K 114	DSC 11	252	343	1998/01 →
K 124	DSC 12	265	360	1998/01 →
K 94 EB/IB/UB	DC9 18 310 (Euro 4)	228	310	2005/11 →

L113

Seri	Motor Tanımı	kW	HP	Üretim Yılı
L 113 CLB/CLL/TLL	DN/DS/DSC 11			1990/01 → 1998/12

L94

Seri	Motor Tanımı	kW	HP	Üretim Yılı
L 94	DSC 9 (Euro2)			1997/03 → 2001/12
L 94 Ethanol	DSI 9 E01			1998/01 →

N112/113

Seri	Motor Tanımı	kW	HP	Üretim Yılı
N 112 CLB	DN 11			1990/01 →
N 113 ALB	DS/DSC/DSI 11	252	343	1991/09 →

N94

Seri	Motor Tanımı	kW	HP	Üretim Yılı
N 94 E/EB/IB/UB	DC9 18 310 (Euro 4)	228	310	2005/11 →
N 94 EB/IB/UB	DSC9 (Euro 2)	167	227	1997/09 →

OmniCity/Line/Link (Irizar)

Seri	Motor Tanımı	kW	HP	Üretim Yılı
11/12/18	DC 9 17 270	198	270	2006/09 →

OmniExpress

Seri	Motor Tanımı	kW	HP	Üretim Yılı
OmniExpress 310	DC 9 18 310	228	310	2007/09 →
OmniExpress 360	DC 09 112 E6	265	360	2014/01 →
OmniExpress 380	DC 12 13 380	279	380	2007/09 →
OmniExpress 410	DC 13 115 E6	302	410	2014/01 →
OmniExpress 420	DC 12 13 420	309	420	2007/09 →
OmniExpress 450	DC 13 124 E6	331	450	2014/01 →
OmniExpress 490	DC 13 125 E6	360	490	2014/01 →

PB / Irizar PB

Seri	Motor Tanımı	kW	HP	Üretim Yılı
PB 12.3 12.9, 13.8, 15.3	DC13 05 400	294	400	2008/09 →
PB 12.3 12.9, 13.8, 15.3	DT 12 03 470	345	470	2006/09 →
PB 420	DC12	309	420	2002/10 → 2006/08

S82/112/113

Seri	Motor Tanımı	kW	HP	Üretim Yılı
S 113 AL	DS 11			1992/10 →

Touring

Seri	Motor Tanımı	kW	HP	Üretim Yılı
HD 12-360	DC 09 112 E6	265	360	2014/01 →
HD 12-410	DC 13 115 E6	302	410	2014/01 →
HD 12-440	DC/DT13 10 440	324	440	2010/02 →
HD 12-450	DC 13 124 E6	331	450	2014/01 →
HD 12-480	DC13 07 480	353	480	2010/02 →
HD 12-490	DC 13 125 E6	360	490	2014/01 →
