Ürün Bilgisi
- Üretim Durumu: Aktif

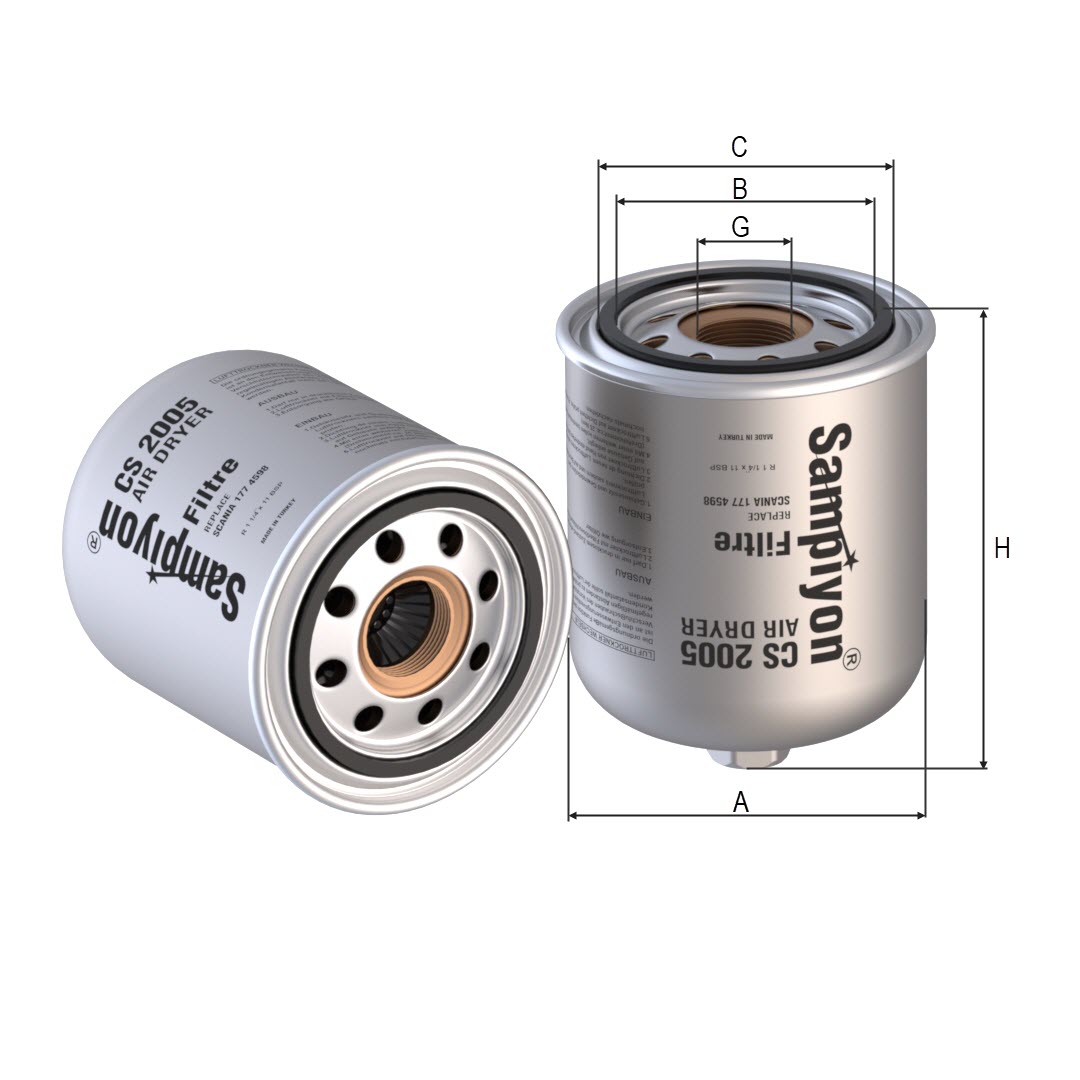

Ölçüler
- A: 136,00 mm
- B: 97,50 mm
- C: 109,00 mm
- G: 1 1/4-11 BSP
- H: 177,00 mm
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| G 230 | DC9 16-230 E4 | 169 | 230 | 2007/10 → | |
| G 250 | DC09 111-250 E6 | 184 | 250 | 2013/10 → | |
| G 270 | DC9 17-270 E4 | 198 | 270 | 2007/10 → | |
| G 280 | DC09 113-280 E6 | 206 | 280 | 2013/10 → | |
| G 280 CNG | OC09 101 280 E5/E6/EEV | 206 | 280 | 2013/03 → | |
| G 310 | DC9 18-310 E4 | 228 | 310 | 2007/10 → | |
| G 320 | DC09 108-320 E6 | 235 | 320 | 2013/10 → | |
| G 340 | DC12 10-340 E4 | 250 | 340 | 2007/10 → | |
| G 340 CNG | OC09.102 E5/6/EEV | 250 | 340 | 2011/01 → | |
| G 360 | DC09 112-360 E6 | 265 | 360 | 2013/10 → | |
| G 370 | DC13 116-370 E6 | 272 | 370 | 2013/10 → | |
| G 380 | DC12 13-380 E4 | 280 | 380 | 2007/10 → | |
| G 410 | DC13 115-410 E6 | 302 | 410 | 2013/10 → | |
| G 420 | DT12 12-420 E4 | 309 | 420 | 2007/10 → | |
| G 440 | DC13 10-440 E5, DC13109-440 E6 | 324 | 440 | 2010/04 → | |
| G 450 | DC13 124/147-450 E6 | 331 | 450 | 2013/10 → | |
| G 470 | DT12 06-470 E3 | 345 | 470 | 2007/10 → | |
| G 480 | DC13 07-480 E5 | 353 | 480 | 2007/10 → | |
| G 490 | DC13 125-490 E6 | 360 | 490 | 2013/10 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| G 280 | DC09 130 | 206 | 280 | 2017/06 → | |
| G 320 | DC09 126 | 235 | 320 | 2017/06 → | |
| G 360 | DC09 127 | 265 | 360 | 2017/06 → | |
| G 370 | DC13 149 | 272 | 370 | 2017/06 → | |
| G 410, G 410 XT | DC13 141 | 302 | 410 | 2017/06 → | |
| G 450, G 450 XT | DC13 148 | 331 | 450 | 2017/06 → | |
| G 500, G 500 XT | DC13 155 | 358 | 500 | 2017/06 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| L 220 | DC07 111 | 162 | 220 | 2018/02 → | |
| L 250 | DC07 112 | 184 | 250 | 2018/02 → | |
| L 280 (DC07) | DC07 113 | 206 | 280 | 2018/02 → | |
| L 280 (DC09) | DC09 130 | 206 | 280 | 2017/12 → | |
| L 280 CNG | OC09 104 | 206 | 280 | 2018/02 → | |
| L 320 | DC09 126 | 235 | 320 | 2017/12 → | |
| L 340 CNG | OC09 105 | 250 | 340 | 2018/02 → | |
| L 360 | DC09 127 | 265 | 360 | 2017/12 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| P 230 | DC9-01/04/13-230 E3 | 169 | 230 | 2004/09 → | |
| P 250 | DC09 109/111-250 E5/6 | 184 | 250 | 2012/01 → | |
| P 270 | DC9 17-270 E4 | 198 | 270 | 2005/10 → | |
| P 280 | DC9 29/36/38-280 E5/EEV | 206 | 280 | 2007/10 → | |
| P 280 CNG | OC09 101 280 E5/E6/EEV | 206 | 280 | 2013/03 → | |
| P 310 | DC9 18/110-310 E 4/5 | 228 | 310 | 2005/11 → | |
| P 310 CNG | OC9 G05 E5/6/EEV | 224 | 305 | 2011/01 → | |
| P 320 | DC09 37/108-320 E6 | 235 | 320 | 2013/10 → | |
| P 320, P 325 | DC9 22, DC9 28-320 E5 | 235 | 320 | 2007/10 → | |
| P 340 | DC11 08-340 E3 | 250 | 340 | 2004/09 → | |
| P 340 CNG | OC09.102 E5/6/EEV | 250 | 340 | 2011/01 → | |
| P 360 | DC13 06-360 E5 | 265 | 360 | 2007/10 → | |
| P 370 | DC13 116-370 E6 | 272 | 370 | 2013/10 → | |
| P 380 | DC12 13-380 E4 | 280 | 380 | 2005/10 → | |
| P 400 | DC13 05-400 E5 | 294 | 400 | 2007/10 → | |
| P 410 | DC13 115-410 E6 | 302 | 410 | 2013/10 → | |
| P 420 | DC12 15-420 E5 | 309 | 420 | 2006/05 → | |
| P 450 | DC13 124-450 E6 | 331 | 450 | 2013/10 → | |
| P 470 | DT12 06-470 E3 | 345 | 470 | 2004/09 → 2007/09 | |
| P 480 | DT12 17-480 E4 | 353 | 480 | 2006/09 → | |
| P 490 | DC13 125-490 E6 | 360 | 490 | 2013/10 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| P 220 | DC07 111 | 162 | 220 | 2018/02 → | |
| P 250 | DC07 112 | 184 | 250 | 2018/02 → | |
| P 280 (DC07) | DC07 113 | 206 | 280 | 2018/02 → | |
| P 280 (DC09) | DC09 130 | 206 | 280 | 2017/09 → | |
| P 280 CNG | OC09 104 | 206 | 280 | 2018/02 → | |
| P 320 | DC09 126 | 235 | 320 | 2017/09 → | |
| P 340 CNG | OC09 105 | 250 | 340 | 2018/02 → | |
| P 360 | DC09 127 | 265 | 360 | 2017/09 → | |
| P 370 | DC13 149 | 272 | 370 | 2017/09 → | |
| P 410 | DC13 141 | 302 | 411 | 2017/09 → | |
| P 410 CNG | OC13 101 | 302 | 410 | 2018/01 → | |
| P 450 | DC13 148 | 331 | 450 | 2017/09 → | |
| P 500 | DC13 155 | 358 | 487 | 2017/09 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| R 230 | DC9 13/DC9 19 E3 | 169 | 230 | 2004/06 → | |
| R 250 | DC09 111-250 E6 | 184 | 250 | 2013/10 → | |
| R 270 | DC9 17-270 E4 | 198 | 270 | 2005/10 → | |
| R 280 | DC09 113-280 E6 | 206 | 280 | 2013/10 → | |
| R 310 | DC9 18-310 E4 | 228 | 310 | 2005/10 → | |
| R 320 | DC09 108-320 E6 | 235 | 320 | 2013/10 → | |
| R 340 | DC12 10-340 E4 | 250 | 340 | 2005/10 → | |
| R 360 | DC13 06-360 E5 | 265 | 360 | 2007/10 → | |
| R 370 | DC13 116-370 E6 | 272 | 370 | 2013/10 → | |
| R 380 | DC12 13-380 E4 | 280 | 380 | 2005/10 → | |
| R 400 | DC13 05-400 E5 | 294 | 400 | 2007/10 → | |
| R 410 | DC13 115-410 E6 | 302 | 410 | 2013/10 → | |
| R 420 | DC12 15-420 E5 | 309 | 420 | 2006/02 → | |
| R 440 | DC13 10/109-440 E5/6 | 324 | 440 | 2007/10 → | |
| R 450 | DC13 124/147-450 E6 | 331 | 450 | 2013/10 → | |
| R 470 | DT12 03-470 E4 | 345 | 470 | 2005/10 → 2007/09 | |
| R 480 | DT12 17-480 E4 | 353 | 480 | 2006/09 → | |
| R 490 | DC13 125-490 E6 | 360 | 490 | 2013/10 → | |
| R 500 | DC16 06-500 E4 | 368 | 500 | 2006/02 → | |
| R 520 | DC16-101-520 E6 | 382 | 520 | 2013/10 → | |
| R 560 | DC16 05-560 E4 | 412 | 560 | 2006/02 → | |
| R 580 | DC16 03-580 E3 | 426 | 580 | 2004/06 → | |
| R 620 | DC16 08-620 E4, DC16 17-620 E5 | 456 | 620 | 2006/05 → | |
| R 730 | DC16 21/103-730 E5/EEV/E6 | 537 | 730 | 2010/05 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| R 370, S 370 | DC13 149 | 272 | 370 | 2016/10 → | |
| R 410, R 410 XT, S 410 | DC13 141 | 302 | 410 | 2016/08 → | |
| R 450, R 450 XT, S 450 | DC13 148 | 331 | 450 | 2016/08 → | |
| R 500, R 500 XT, S 500 | DC13 155 | 358 | 500 | 2016/08 → | |
| R 520, S 520 | DC16 105, DC16 116 | 382 | 520 | 2016/08 → | |
| R 580, S 580 | DC16 106, DC16 117 | 427 | 580 | 2016/08 → | |
| R 650, S 650 | DC16 118 | 478 | 650 | 2017/06 → | |
| R 730, S 730 | DC16 103/107/108 | 537 | 730 | 2016/08 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| T 340 | DC11 08-340 Euro3 | 250 | 340 | 2004/09 → 2005/12 | |
| T 380 | DC11 09-380 Euro3 | 279 | 380 | 2004/09 → 2005/12 | |
| T 420 | DC12 14-420 Euro3 | 309 | 420 | 2004/09 → 2005/12 | |
| T 470 | DT12 06-470 Euro3 | 346 | 470 | 2004/09 → 2005/12 | |
| T 500 | DC16 04-500 Euro3 | 368 | 500 | 2004/09 → 2005/12 | |
| T 580 | DC16 03-580 Euro3 | 426 | 580 | 2004/09 → 2005/12 |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 12, 12,5, 13 | DC09 E6 | 265 | 360 | 2014/01 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 270 H, L, M | DC 9 17 270 | 198 | 270 | 2007/09 → | |
| 280 H, L, M | DC 9 29/36 280 | 206 | 280 | 2008/09 → | |
| 310 H, L, M | DC 9 18 310 | 228 | 310 | 2007/09 → | |
| 320 H, L, M | DC 9 22/32 320 | 235 | 320 | 2008/09 → | |
| 340 H, L, M | DC 12 10 340 | 250 | 340 | 2007/09 → | |
| 360 H, L, M | DC 9 24 360 | 265 | 360 | 2008/09 → | |
| 380 H, L, M | DC 12 13 380 | 280 | 380 | 2007/09 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 11/12/18 | DC 9 17 270 | 198 | 270 | 2006/09 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| OmniExpress 310 | DC 9 18 310 | 228 | 310 | 2007/09 → | |
| OmniExpress 360 | DC 09 112 E6 | 265 | 360 | 2014/01 → | |
| OmniExpress 380 | DC 12 13 380 | 279 | 380 | 2007/09 → | |
| OmniExpress 410 | DC 13 115 E6 | 302 | 410 | 2014/01 → | |
| OmniExpress 420 | DC 12 13 420 | 309 | 420 | 2007/09 → | |
| OmniExpress 450 | DC 13 124 E6 | 331 | 450 | 2014/01 → | |
| OmniExpress 490 | DC 13 125 E6 | 360 | 490 | 2014/01 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| PB 12.3 12.9, 13.8, 15.3 | DC13 07 480 | 353 | 480 | 2008/09 → | |
| PB 12.3 12.9, 13.8, 15.3 | DT 12 03 470 | 345 | 470 | 2006/09 → |
