Ürün Bilgisi
- Barkod: 8697666006563
- Üretim Durumu: Aktif

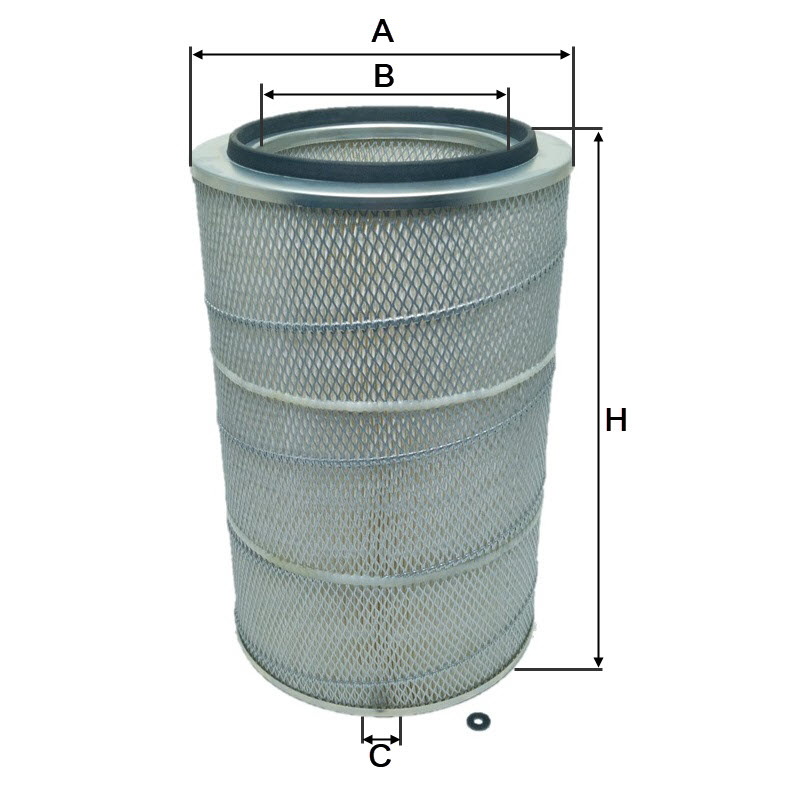

Ölçüler
- A: 327,00 mm
- B: 216,50 mm
- C: 10,50 mm
- H: 515,00 mm
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 180 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/02 | |
| 190 E 40 | Cursor E0681 | 294 | 400 | 2000/09 → 2002/02 | |
| 190 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/02 | |
| 190 E 46 | Cursor13 | 337 | 460 | 2001/01 → 2002/02 | |
| 190 E 47 | 8210.42M.(TCA) | 345 | 470 | 1992/04 → 2001/05 | |
| 190 E 48 | Cursor13 | 353 | 480 | 2001/01 → 2002/02 | |
| 190 E 52 | 8280.42S.(TCA) | 378 | 514 | 1992/04 → 2002/02 | |
| 240 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/02 | |
| 240 E 46 | Cursor13 | 337 | 460 | 2001/01 → 2002/02 | |
| 240 E 47 | 8210.42M.(TCA) | 345 | 470 | 1995/11 → 2001/05 | |
| 240 E 48 | Cursor13 | 353 | 480 | 2001/01 → 2002/02 | |
| 240 E 52 | 8280.42S.(TCA) | 378 | 514 | 1992/04 → 2002/02 | |
| 260 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/02 | |
| 260 E 46 | Cursor13 | 337 | 460 | 2001/03 → 2002/02 | |
| 260 E 47 | 8210.42M.(TCA) | 345 | 470 | 1992/06 → 2001/05 | |
| 260 E 48 | Cursor13 | 353 | 480 | 2001/01 → 2002/02 | |
| 260 E 52 | 8280.42S.(TCA) | 378 | 514 | 1992/04 → 2002/02 | |
| 400 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/02 | |
| 440 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/02 | |
| 440 E 46 | Cursor13 | 337 | 460 | 2001/03 → 2002/02 | |
| 440 E 47 | 8210.42M.(TCA) | 345 | 470 | 1992/04 → 2001/05 | |
| 440 E 48 | Cursor13 | 353 | 480 | 2001/01 → 2002/02 | |
| 440 E 52 | 8280.42S.350 | 378 | 514 | 1992/04 → 2002/02 |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 180 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/06 | |
| 180 E 52 | 8280.42S.350 | 375 | 514 | 1992/04 → 2002/06 | |
| 190 E 40 | Cursor E0681 | 294 | 400 | 2000/09 → 2002/06 | |
| 190 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/06 | |
| 240 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/06 | |
| 260 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/06 | |
| 260 E 52 | 8280.42S.350 | 375 | 514 | 1992/04 → 2002/06 | |
| 400 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/06 | |
| 400 E 52 | 8280.42S.350 | 375 | 514 | 1992/04 → 2002/06 | |
| 440 E 43 | Cursor E0681D | 315 | 430 | 1999/10 → 2002/06 |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 190 E 38 | Cursor 13 | 280 | 382 | 2001/01 → 2004/11 | |
| 190 E 44 | Cursor 13 | 324 | 442 | 2000/09 → 2004/11 | |
| 260 E 38 | Cursor 13 | 280 | 382 | 2001/01 → 2004/11 | |
| 260 E 44 | Cursor 13 | 324 | 442 | 2000/09 → 2004/11 | |
| 340 E 38 | Cursor 13 | 280 | 382 | 2001/01 → 2004/11 | |
| 340 E 44 | Cursor 13 | 324 | 442 | 2001/01 → 2004/11 | |
| 380 E 38 | Cursor 13 | 280 | 382 | 2001/01 → 2004/11 | |
| 380 E 44 | Cursor 13 | 324 | 442 | 2001/01 → 2004/11 | |
| 410 E 38 | Cursor 13 | 280 | 382 | 2001/01 → 2004/11 | |
| 410 E 44 | Cursor 13 | 324 | 442 | 2001/01 → 2004/11 | |
| 440 E 38 | Cursor 13 | 280 | 382 | 2001/01 → 2004/11 | |
| 440 E 44 | Cursor 13 | 324 | 442 | 2001/01 → 2004/11 | |
| 720 E 38 | Cursor 13 | 280 | 382 | 2001/01 → 2004/11 | |
| 720 E 44 | Cursor 13 | 324 | 442 | 2001/01 → 2004/11 | |
| 720 E 48 | Cursor 13 | 353 | 480 | 2001/05 → 2004/11 |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 400 (190S40, 260S40, 440S40) | Cursor 10 (F3AE0681B/H) | 294 | 400 | 2002/01 → | |
| 430 (190S43, 260S43, 440S43) | Cursor 10 (F3AE0681D) | 316 | 430 | 2002/01 → | |
| 480 (190S48, 260S48, 440S48) | Cursor 13 (F3BE0681E/3681H) | 353 | 480 | 2002/01 → | |
| 540 (260S54, 440S54) | Cursor 13 (F3BE0681A) | 397 | 540 | 2002/01 → |
