Ürün Bilgisi
- Üretim Durumu: Aktif

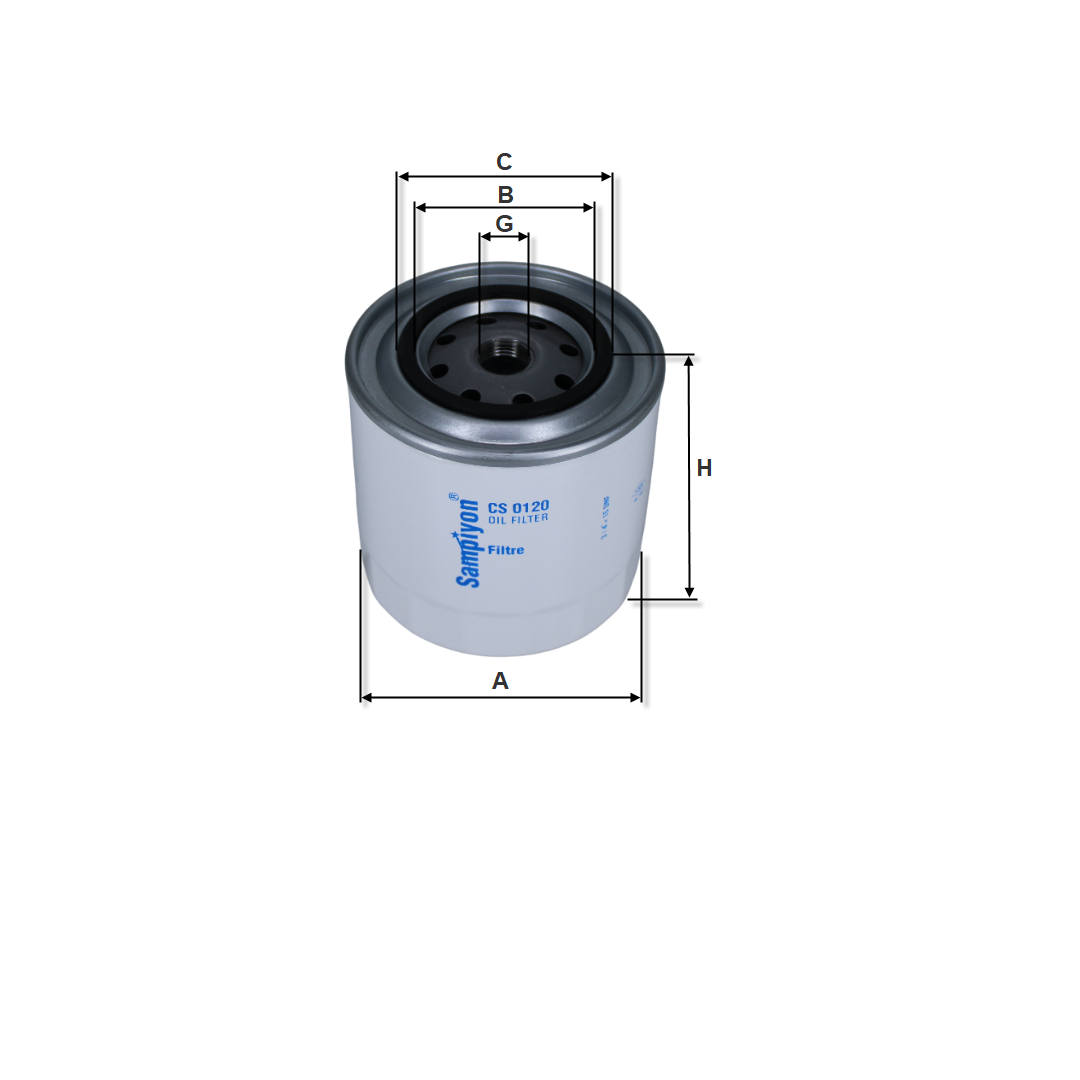

Ölçüler
- A: 107,00 mm
- B: 62,40 mm
- C: 71,80 mm
- G: 3/4-16 UNF
- H: 114,00 mm
- V: Çift(double) By-Pass Valfi
- R: Klape
- ASV: Anti Sifon Valf
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 55 | Fiat 8035.06 | 43 | 58 | 2002/01 → 2004/12 | |
| 60 | 44 | 60 | 2004/01 → 2005/12 | ||
| 60 Straddle Mount | Iveco 8035.05D.939 | 43.5 | 58 | 2006/01 → | |
| 65 | 48 | 65 | |||
| 70 | 2004/01 → | ||||
| 70 Straddle Mount | Iveco 8035.25C.939 | 50.7 | 68 | 2006/01 → | |
| 75 | 55 | 75 | 2002/11 → | ||
| 80 | 59 | 80 | 2006/01 → | ||
| 80 Straddle Mount | Iveco 8045.05R.939 | 58.8 | 79 | 2006/01 → | |
| 85 | 63 | 85 | |||
| 90 | 66 | 89 | |||
| 90 Straddle Mount | Iveco 8045.25.939 | 65.5 | 88 | 2006/01 → | |
| 95 | 69 | 94 | 2007/01 → 2008/12 | ||
| 95 Straddle Mount | Iveco 8045.25-L939 | 72 | 98 | 2006/01 → | |
| 95 TIER 2 | 72 | 98 |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| TD60D | |||||
| TD70D | |||||
| TD75D | Iveco 8045 | 54 | 74 | 2002/09 → | |
| TD75D - TIER 2 | 2006/05 → | ||||
| TD80D - TIER 2 | 59 | 80 | 2004/01 → | ||
| TD90D | 66 | 89 | |||
| TD90D - TIER 2 | 2004/01 → | ||||
| TD95 Straddle Mount | 72 | 98 | 2006/01 → | ||
| TD95D | 2004/01 → | ||||
| TD95D Plus | 2006/01 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| TK100A | Iveco | 69 | 94 | ||
| TK100M | 2004/02 → | ||||
| TK65F | 1999/12 → 2004/02 | ||||
| TK65V | 1999/12 → 2004/02 | ||||
| TK70FA | 2004/02 → | ||||
| TK70FA / VA | Iveco | 54 | 74 | ||
| TK75FA / 75MA / 75VA | Iveco | 55 | 75 | ||
| TK76 | 8045.06.521 | 53 | 72 | 1999/12 → 2004/02 | |
| TK80A | 2004/02 → | ||||
| TK80A / 80MA | Iveco | 59 | 79 | ||
| TK80MA | 2004/02 → | ||||
| TK85 | 1999/12 → 2004/02 | ||||
| TK85 / 85M | 8045.05.521 | 59 | 79 | ||
| TK90A / 90MA | Iveco | 66 | 88 | 2004/02 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| TN 60A | 2003/12 → | ||||
| TN 60DA | Iveco | 44 | 59 | 2003/12 → | |
| TN 60SA | Iveco | 44 | 59 | 2003/12 → | |
| TN 65F | 1997/09 → 2001/10 | ||||
| TN 70 | 2000/06 → 2003/12 | ||||
| TN 70 FDT/D/DDT/SDT | Iveco 8035.25 | 51 | 69 | ||
| TN 70A | 2003/12 → | ||||
| TN 70D | 51 | 70 | 2000/06 → 2003/12 | ||
| TN 70DA, TN 75DA | Iveco | 53 | 72 | 2003/12 → | |
| TN 70F | 2001/10 → 2004/01 | ||||
| TN 70S | 2000/06 → 2003/12 | ||||
| TN 70SA | Iveco | 53 | 72 | 2003/12 → | |
| TN 75, 75DDT/D/SDT/V/VDT/NDT | Iveco 8035.05 Turbo | 53 | 72 | 1999/01 → | |
| TN 75A | 2003/12 → | ||||
| TN 75F | Iveco 8045.05 | 56 | 75 | 1997/11 → 2001/10 | |
| TN 75S | 1998/11 → 2003/12 | ||||
| TN 75SA | Iveco | 56 | 76 | 2003/12 → | |
| TN 80F | 2001/10 → 2004/01 | ||||
| TN 85FA | IVECO 8045.25R | 62 | 84 | 2004/01 → | |
| TN 90F | Iveco 8045.05 Turbo | 65 | 88 | 1997/11 → | |
| TN 95 Straddle Mount | 2006/01 → | ||||
| TN 95D | 2004/01 → | ||||
| TN 95D Plus | 2006/01 → | ||||
| TN 95F | 70 | 95 | 2001/10 → 2004/01 | ||
| TN 95FA | IVECO 8045.25S | 68 | 92 | 2004/01 → | |
| TN 95NA | Iveco | 68 | 92 | 2004/12 → | |
| TN 95VA | Iveco | 68 | 92 | 2004/12 → | |
| TN F-A, TN 75 FA | 8045.05 | 54 | 73 | ||
| TN55 | 1999/09 → 2003/12 |
