Ürün Bilgisi
- Üretim Durumu: Aktif

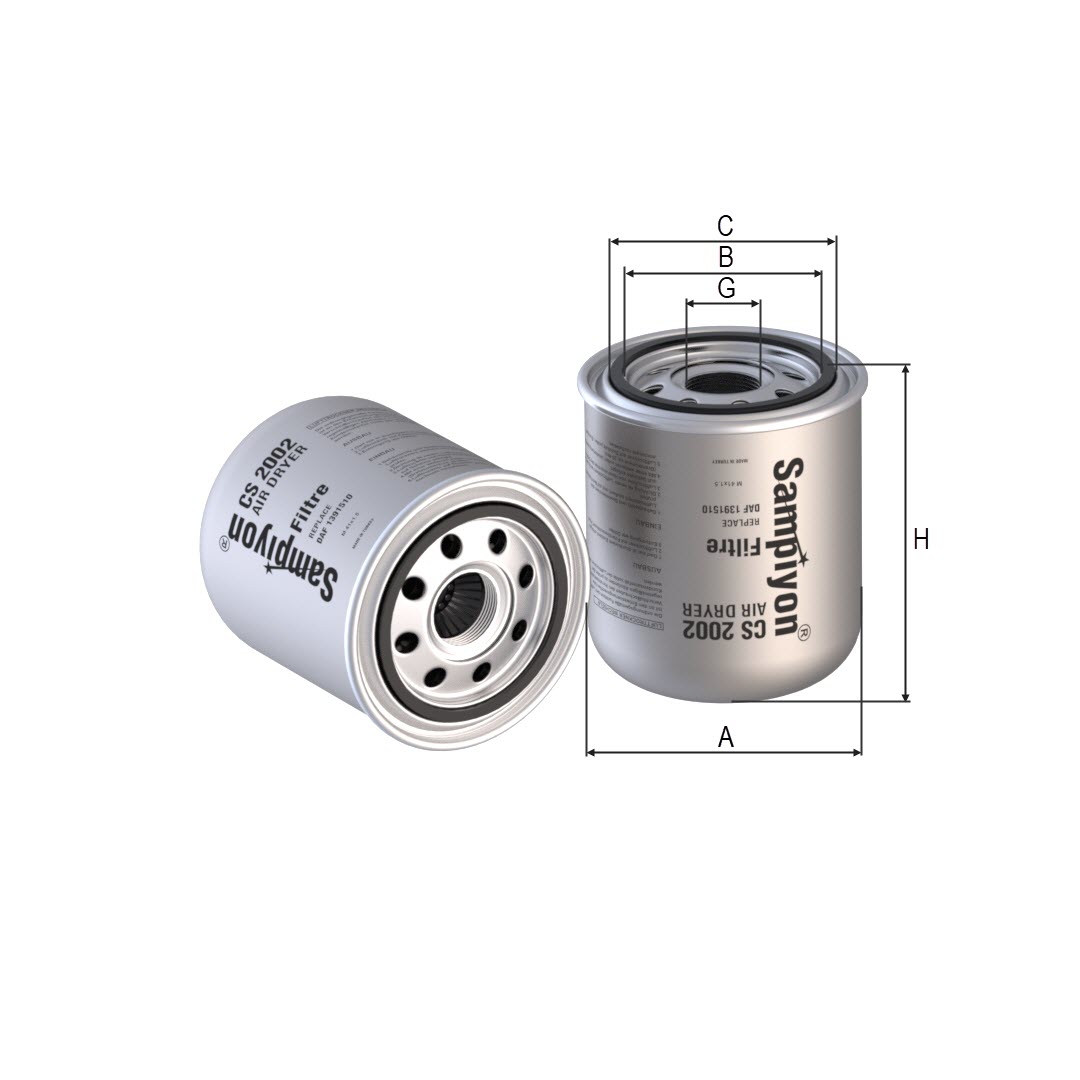

Ölçüler
- A: 136,00 mm
- B: 97,50 mm
- C: 109,00 mm
- G: M 41x1.5
- H: 134,00 mm
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| FA 65CF.240 | NS177M E2 | 176 | 240 | 1998/03 → 2000/12 | |
| FA/FAV 65CF.180 | NS133M E2 | 132 | 180 | 1998/03 → 2000/12 | |
| FA/FAV 65CF.210 | NS156M E2 | 154 | 210 | 1998/03 → 2000/12 |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| CF85.340 | XE250C/E (Euro3) | 250 | 340 | 2001/01 → | |
| CF85.360 | MX 265 S (Euro 4/5/EEV) | 265 | 360 | 2006/09 → | |
| CF85.380 | XE280C/E (Euro3) | 280 | 380 | 2001/01 → | |
| CF85.410 | MX 300 S (Euro 4/5/EEV) | 300 | 410 | 2006/05 → | |
| CF85.430 | XE315C/E (Euro3) | 315 | 428 | 2001/01 → | |
| CF85.460 | MX 340 S (Euro 4/5/EEV) | 340 | 462 | 2006/05 → | |
| CF85.480 | XE355C/E (Euro3) | 355 | 480 | 2002/06 → | |
| CF85.510 | MX 375 S (Euro 4/5/EEV) | 375 | 510 | 2006/05 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| FA 45.130 | BE 99 C | 99 | 135 | 2001/01 → | |
| FA 45.140 | BE 99 C | 99 | 135 | 2001/01 → | |
| FA 45.150 | BE 110 C | 110 | 150 | 2001/01 → | |
| FA 45.160, 45.160 Hybrid | FR118 E4/5/EEV | 118 | 160 | 2006/07 → | |
| FA 45.170 | BE 123 C | 123 | 167 | 2001/01 → | |
| FA 45.180 | FR136 E4/5/EEV | 136 | 185 | 2006/07 → | |
| FA 45.190 | CE 136 C | 136 | 185 | 2001/01 → | |
| FA 45.210 | FR152 E5/EEV | 152 | 207 | 2009/06 → | |
| FA 45.220 | GR165 E4/5 | 165 | 224 | 2006/07 → | |
| FA 45.250 | GR185 E4/5 | 185 | 250 | 2006/07 → | |
| FA 45.300 | GR225 E5/EEV | 225 | 300 | 2009/06 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| FA/FAN/FT 55.160 | FR118 E4 | 118 | 160 | 2006/07 → | |
| FA/FAN/FT 55.170 | BE 123 C | 123 | 167 | 2001/01 → | |
| FA/FAN/FT 55.180 | FR136 E4/5/EEV | 136 | 185 | 2006/07 → | |
| FA/FAN/FT 55.190 | CE 136 C | 136 | 185 | 2001/01 → | |
| FA/FAN/FT 55.210 | FR152 E4/5/EEV | 152 | 207 | 2009/06 → | |
| FA/FAN/FT 55.220 | CE 162 C | 162 | 220 | 2001/01 → | |
| FA/FAN/FT 55.250 | GR185 E4/5 | 185 | 250 | 2006/07 → | |
| FA/FAN/FT 55.290 | GR210 E4/5 | 210 | 286 | 2006/07 → | |
| FA/FAN/FT 55.300 | GR220 E5/EEV | 220 | 300 | 2009/06 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| FA 150 | PX5 | 112 | 152 | 2014/01 → | |
| FA 170 | PX4 | 127 | 172 | 2017/10 → | |
| FA 180 | PX5 | 134 | 182 | 2014/01 → | |
| FA 210 | PX5 | 157 | 213 | 2014/01 → | |
| FA 220 | PX7 | 162 | 220 | 2014/01 → | |
| FA 230 | PX7 | 172 | 234 | 2016/09 → | |
| FA 250 | PX7 | 187 | 254 | 2014/01 → | |
| FA 260 | PX7 | 194 | 264 | 2016/09 → | |
| FA 280 | PX7 | 209 | 284 | 2014/01 → | |
| FA 290 | PX7 | 217 | 295 | 2016/09 → | |
| FA 310 | PX7 | 231 | 314 | 2014/01 → | |
| FA 320 | PX7 | 239 | 325 | 2016/09 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| 2219 L | XE280C | 280 | 380 | 1999/10 → | |
| 2220 L | XE250C | 250 | 340 | 1999/10 → | |
| 2221 L | XE250C | 250 | 340 | 1999/10 → | |
| 2222 L | XE250C | 250 | 340 | 1999/10 → | |
| 2223 L | XE315C | 315 | 428 | 1999/10 → | |
| 2225 L | XE250C | 250 | 340 | 1999/10 → | |
| 3232 S | XE250C | 250 | 340 | 1999/10 → | |
| 3233 S | XE355C | 355 | 480 | 1999/10 → | |
| 3238 | XE250C | 250 | 340 | 1999/10 → | |
| 3329, 3331, 3333, 3335, 3338 | XE315C | 315 | 428 | 1999/10 → | |
| 4241 S | XE280C | 280 | 380 | 1999/10 → | |
| 4243 S/TS/TSV, 4343 LS | XE280C | 280 | 380 | 1999/10 → | |
| 4245 TS, 4345 TS, 4446 TS | XE315C | 315 | 428 | 1999/10 → | |
| 4245 TS/TSV, 4345 TS | XE280C | 280 | 380 | 1999/10 → | |
| 4245 TS/TSV, 4345 TS, 4446 TS | XE355C | 355 | 480 | 1999/10 → | |
| 4449 B | XE315C | 315 | 428 | 1999/10 → | |
| 5250 TS, 5350 TS, 5364 T | XE355C | 355 | 480 | 1999/10 → | |
| 5364 T, 5376 T | MX 340 S (Euro 4/5/EEV) | 340 | 462 | 2008/07 → | |
| 5450 B/S, 5460 B | XE315C | 315 | 428 | 1999/10 → |
| Seri | Motor Tanımı | kW | HP | Üretim Yılı | |
|---|---|---|---|---|---|
| HD 120-340XE | DAF XE 250 C1 | 250 | 340 | 2001/09 → | |
| HD 120-380XE | DAF XE 280 C1 | 280 | 381 | 2001/09 → | |
| HD 122-340XE | DAF XE 250 C1 | 250 | 340 | 2001/09 → | |
| HD 122-380XE | DAF XE 280 C1 | 280 | 381 | 2001/09 → | |
| HD 131-430XE | DAF XE 315 C | 315 | 430 | 2001/09 → | |
| HD 139-430XE | DAF XE 315 C | 315 | 430 | 2001/09 → |
